LONZEXY Alloy Middle Rear Axle for SCX10 II
color:black
Quantity:
Product Features & Construction

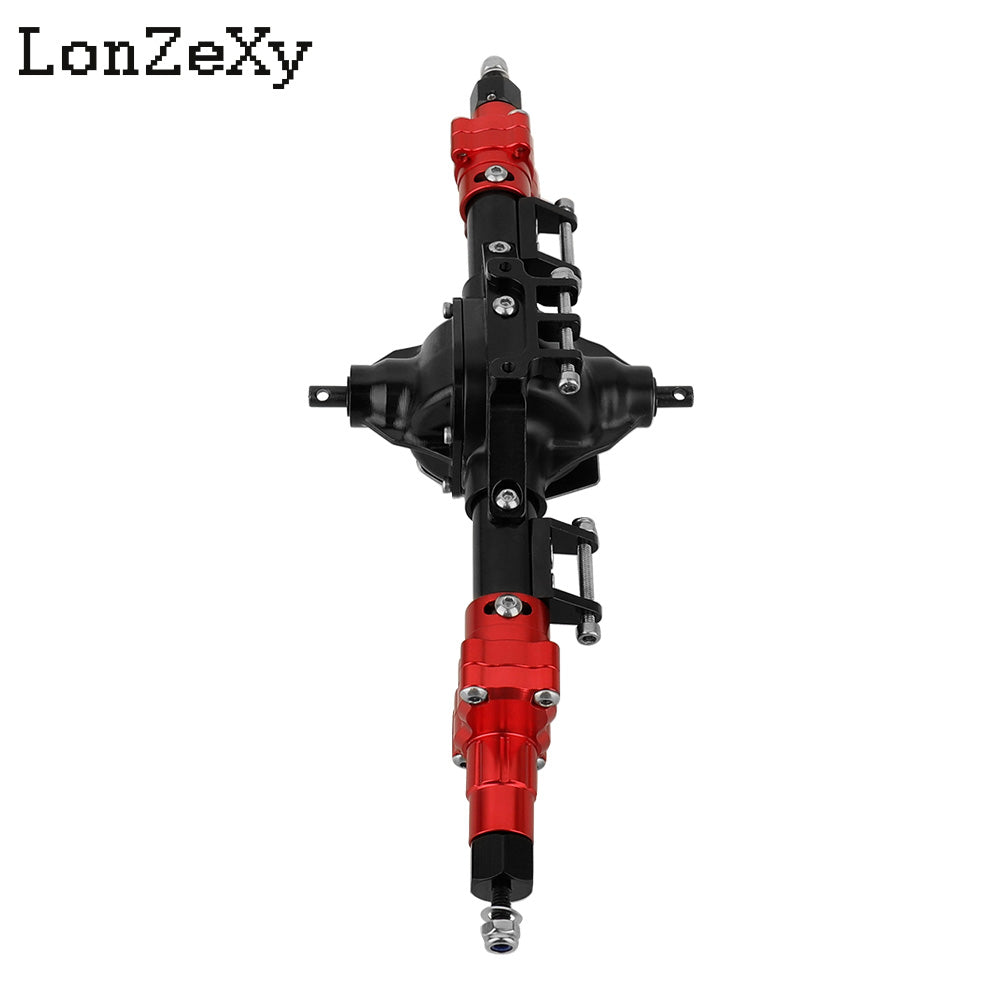

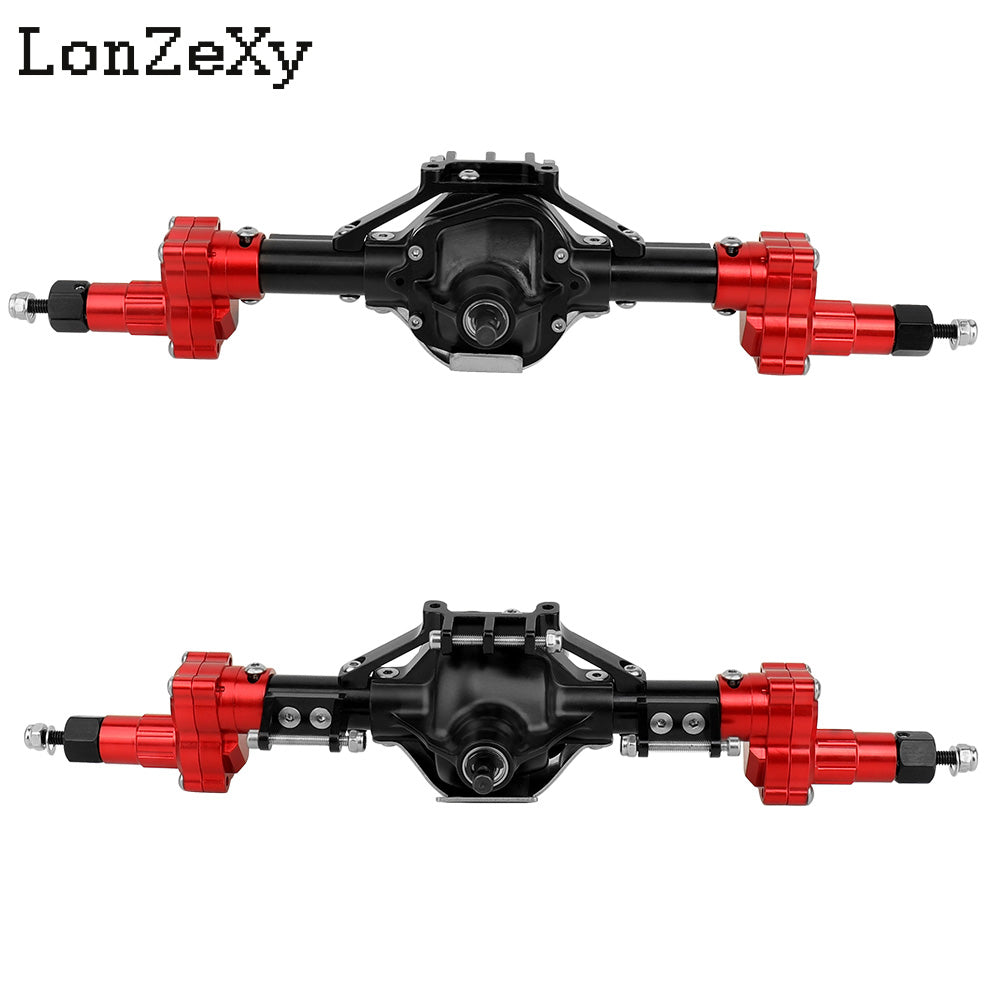

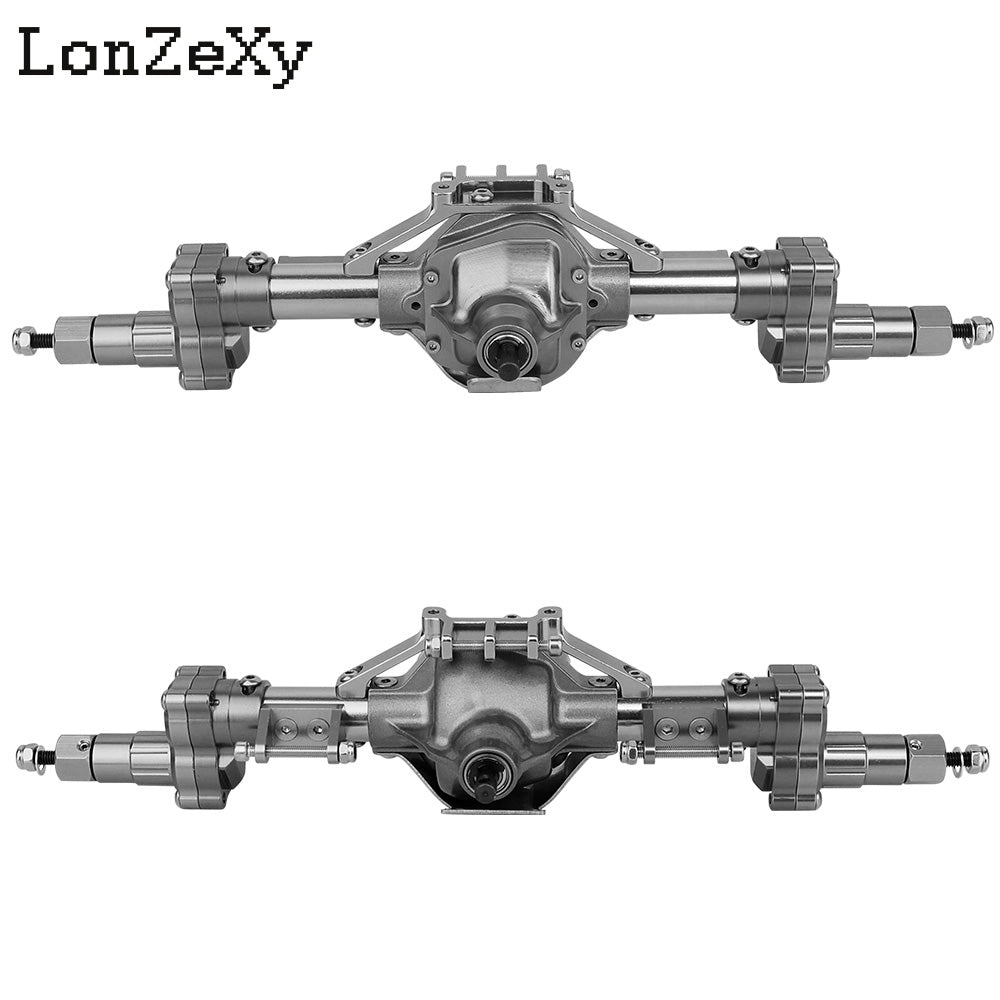

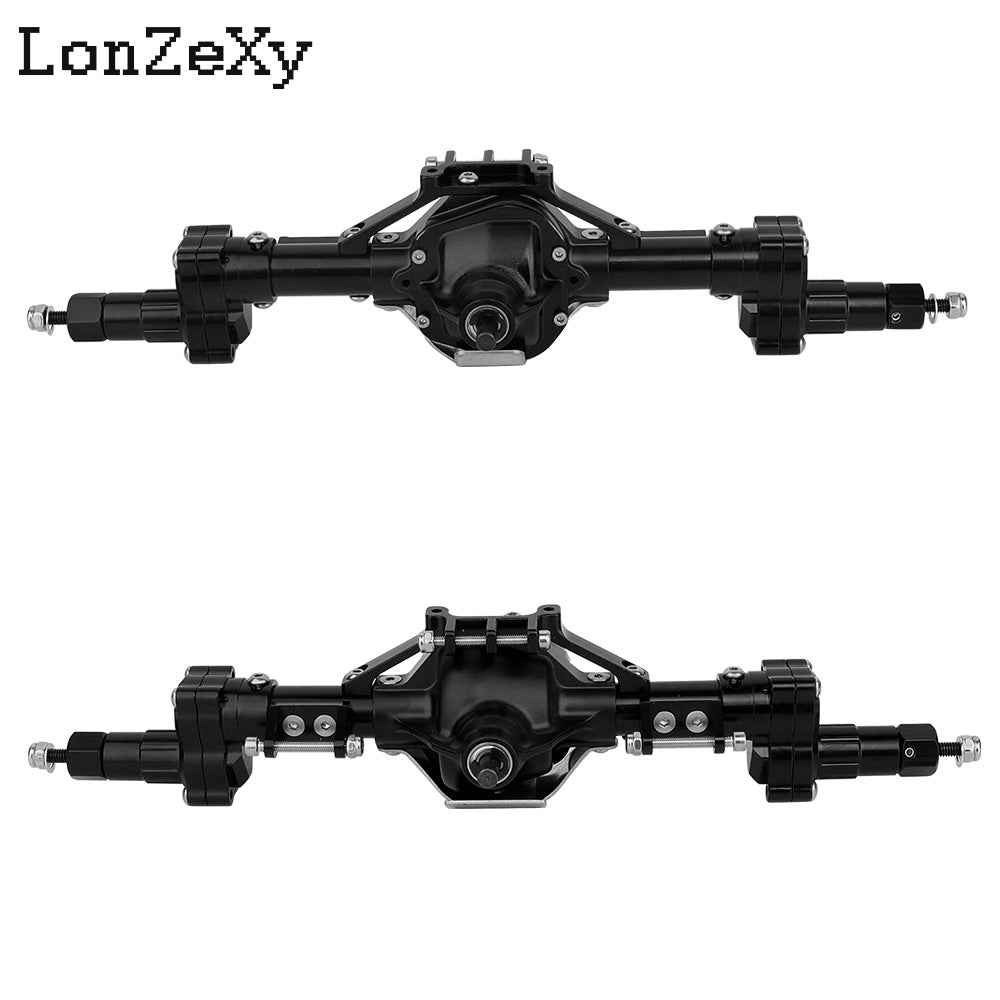

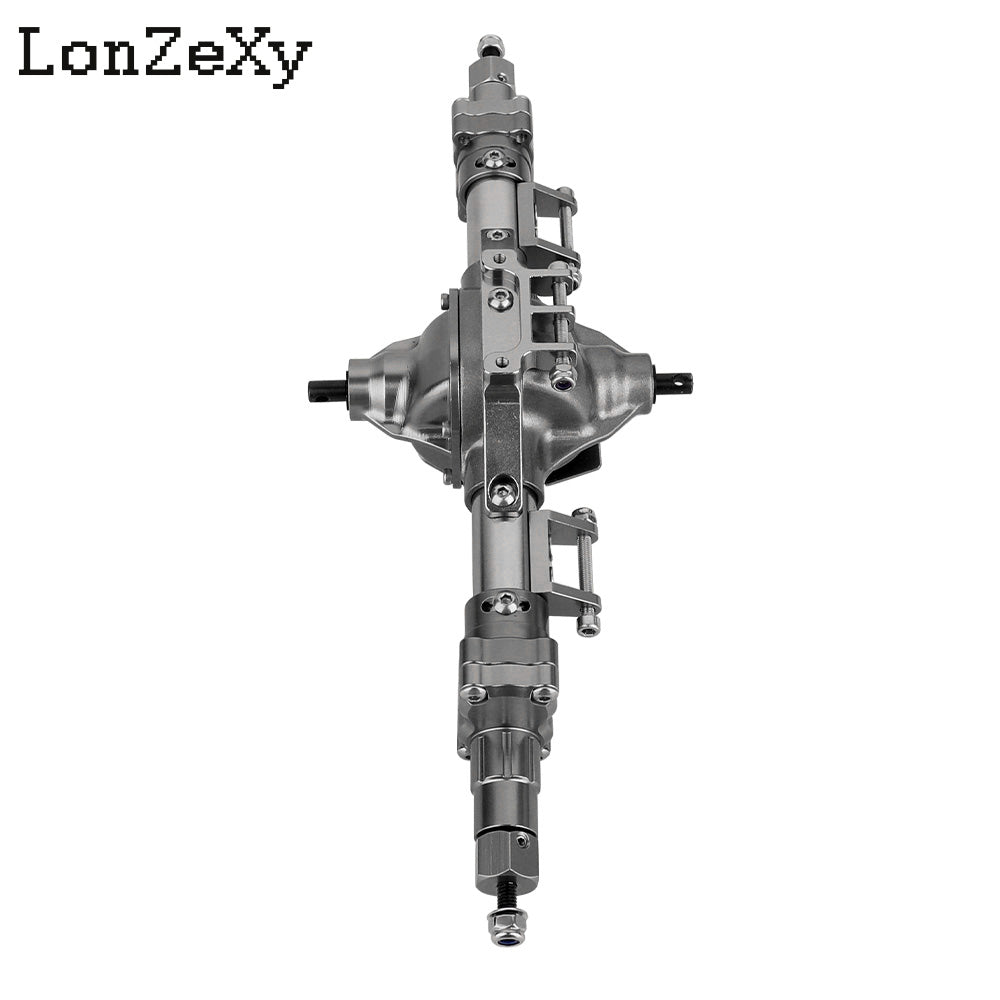

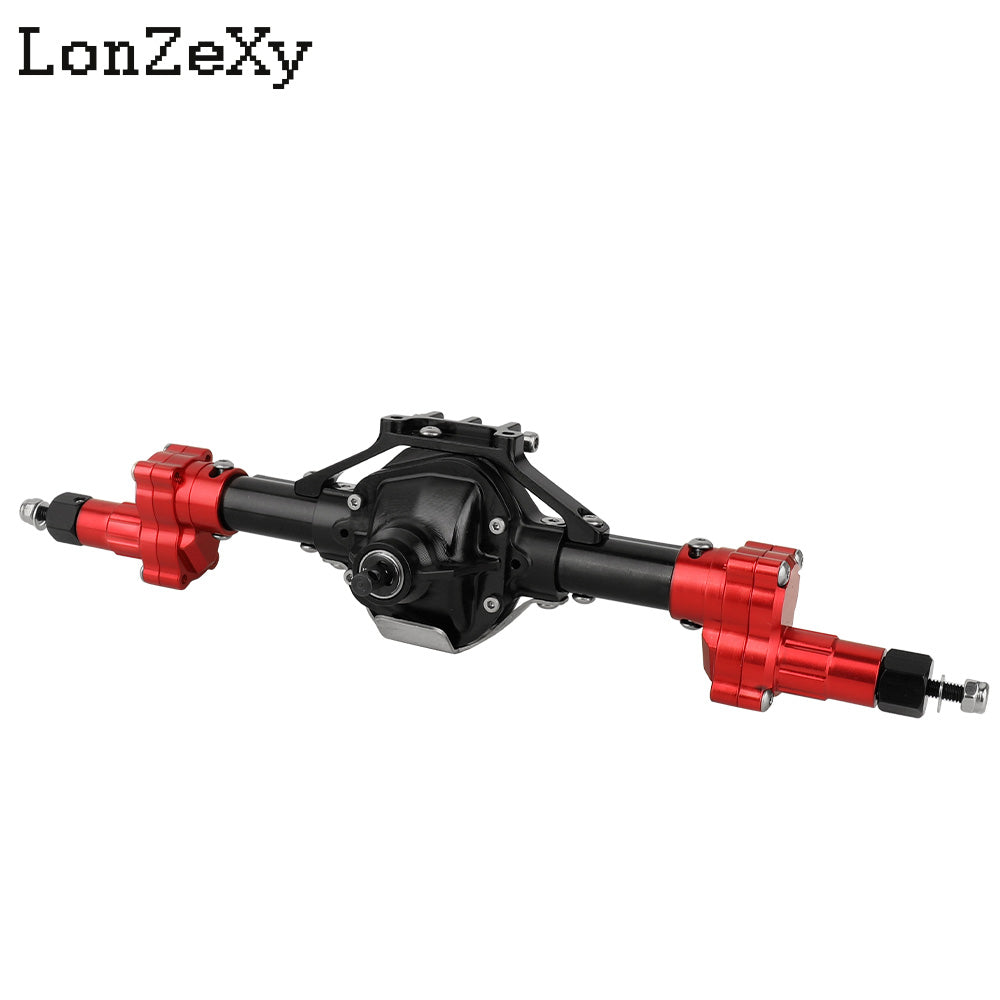

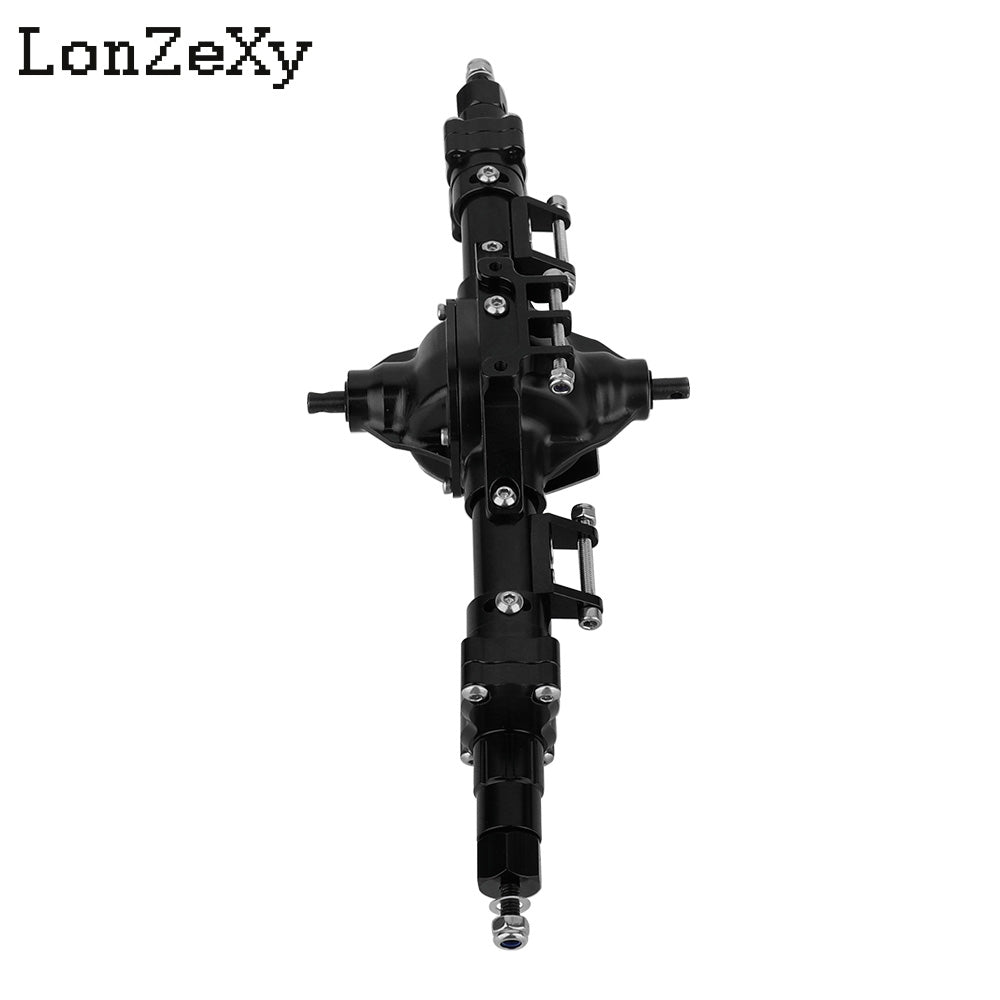

Materials & Design: Billet aluminum housing with a smooth anodized coating, featuring a compact yet durable design; hardened steel gears (bevel gear set: 29T/8T), driveshafts with hardened steel construction, full ball bearings, aluminum steering and servo links, and stainless steel pumpkin armor.
Performance Boost: Portal axles provide higher ground clearance and reduce torque on other drivetrain components, enhancing overall performance.
Compatibility: Designed for SCX10 II chassis 6X6 RC Crawler; the front axle uses a three-link with Panhard link suspension system.
Performance Boost: Portal axles provide higher ground clearance and reduce torque on other drivetrain components, enhancing overall performance.
Compatibility: Designed for SCX10 II chassis 6X6 RC Crawler; the front axle uses a three-link with Panhard link suspension system.
Specifications
Dimensions: Total Width 8.85in; Hex to hex Width 8.03in; Pin to Pin Width 7.48in; Total height added 13mm.
Other Details: 5.0mm axle output shaft; 12mm standard hex; links mount width 7.5mm; servo mount width 42mm; bevel gear set 29T/8T; total gear ratio 3.75:1.
Other Details: 5.0mm axle output shaft; 12mm standard hex; links mount width 7.5mm; servo mount width 42mm; bevel gear set 29T/8T; total gear ratio 3.75:1.
Answer your questions
You can check the mounting hole distances and part dimensions listed in the product images. If unsure, contact us with your RC car model name and we will help verify compatibility.
Some parts include reference images or videos. Due to the DIY nature of RC upgrades, we assume a basic understanding of RC assembly. If you need help, we’re happy to provide installation advice via email.
Orders are usually processed within 1–3 business days. Delivery time depends on your location. Most international orders arrive within 7–15 business days.
